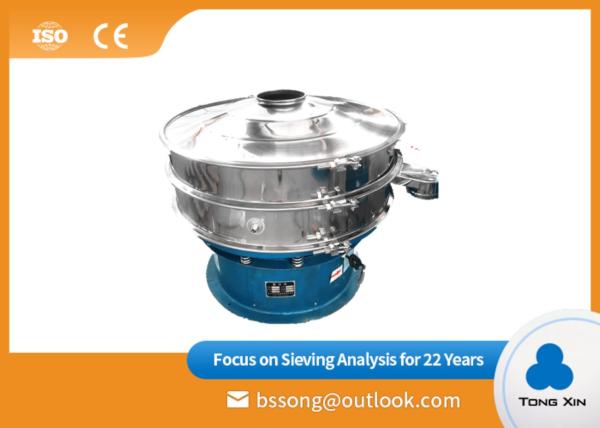

Aggregate Grain Rotary Vibrating Screen Sulphur Gelatin Carbon Black Sand Cast
Introduction
Machinery Separators effectively grade and separate materials on up to four mesh decks.
These revolutionary vibratory separators are designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation.
It benefits from major advances in separation technology providing large improvements in sieving accuracy, capacity, noise levels and upgradable compared with traditional spring suspension separators.
Working Principle
The vertical motor of rotary vibrating screen, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source.
The eccentric hammers change rotation into horizontal, vertical and inclined three dimensional movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.
Specification
Advantages and Features
1. Suitable for powders, particles or mucilage.
2. High efficiency, refined design, easy to replace screen .
3. Small volume, easy to move and maintain.
4. No mesh plug, no powder flying.
Structure
Apply in Industry
| Chemical Industry | Resin pigment, medicine, grease, paint, palette, etc. |
| Abrasive Material and Ceramic Industry | Building sand, mica, alumina, abrasive, refractory material, slurry, etc. |
| Food Industry | Sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. |
| Paper-making Industry | Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. |
| Metallurgy and Mining Industry | Quartz sand, ore, titanium oxide, zinc oxide, etc. |
| Mechanical Industry | Casting sand, powder metallurgy, electromagnetic material and metal powder, etc. |
Technical Parameters
| Screening Material | Proportion | Mesh | Model | Methods | Capacity | Motor power |
| Glucose Powder | 0.8 | 6.20 | SZX-1200-2S | Dry | 2000kg | 1.5kw |
| Wheat Starch | 1.0 | 250 | SZX-1200-1S | Wet | 3200kg | 1.5kw |
| Salt | 1.2 | 30,80 | SZX-1500-2S | Dry | 5000kg | 2.2kw |
| Coarse Sugar | 1.2 | 12 | SSZX-1500-2SZX-1500-1S | Dry | 8000kg | 2.2kw |
Our Advantage
The product of Tongxin company can be sent to the Quality and Technical Supervision Bureau for mesh detection, if not in line with the national standards for you free return and replacement. the follow picture is our record of recent order.
Our Service
1. Professional engineers team can choose the right equipment for you;
2. We can provide thorough after-sales service to ensure the proper use of machine.
3. We can provide OEM customization.
4. We offer 24-hour online consulting service;
5. 20 years production experience to ensure quality;
If you want to get more information of product, please contact us!
